Project Management Procore Project Management Logo

Centralised Drawing Management

Say goodbye to drawing set confusion.

Watch the Video

Project Management Procore Project Management Icon

Revisions won't need markers, scissors, sticky notes, or tape.

Procore construction project management software provides a seamless process for drawing management. Users can quickly and easily view drawings and revisions from start to finish.

Keep everyone on the current set

  • Version comparison and overlay New
  • Secure collaborator permissions New
  • Optical Character Recognition (OCR)
  • Real Time As-Builts®
  • Mobile and offline access
  • Link directly to RFIs, defect lists, submittals, and more

  • Permission to Do More: Granted

    Any collaborator with drawing issuance permission can upload drawings. That means more power for those without admin privileges, and quicker access to design changes for those in the field.

  • Save Time with OCR Technology

    Drawings are automatically named, numbered, and their discipline is recorded using patent-pending Optical Character Recognition (OCR) technology. Procore also scans your sets for detail callouts and links to them automatically.

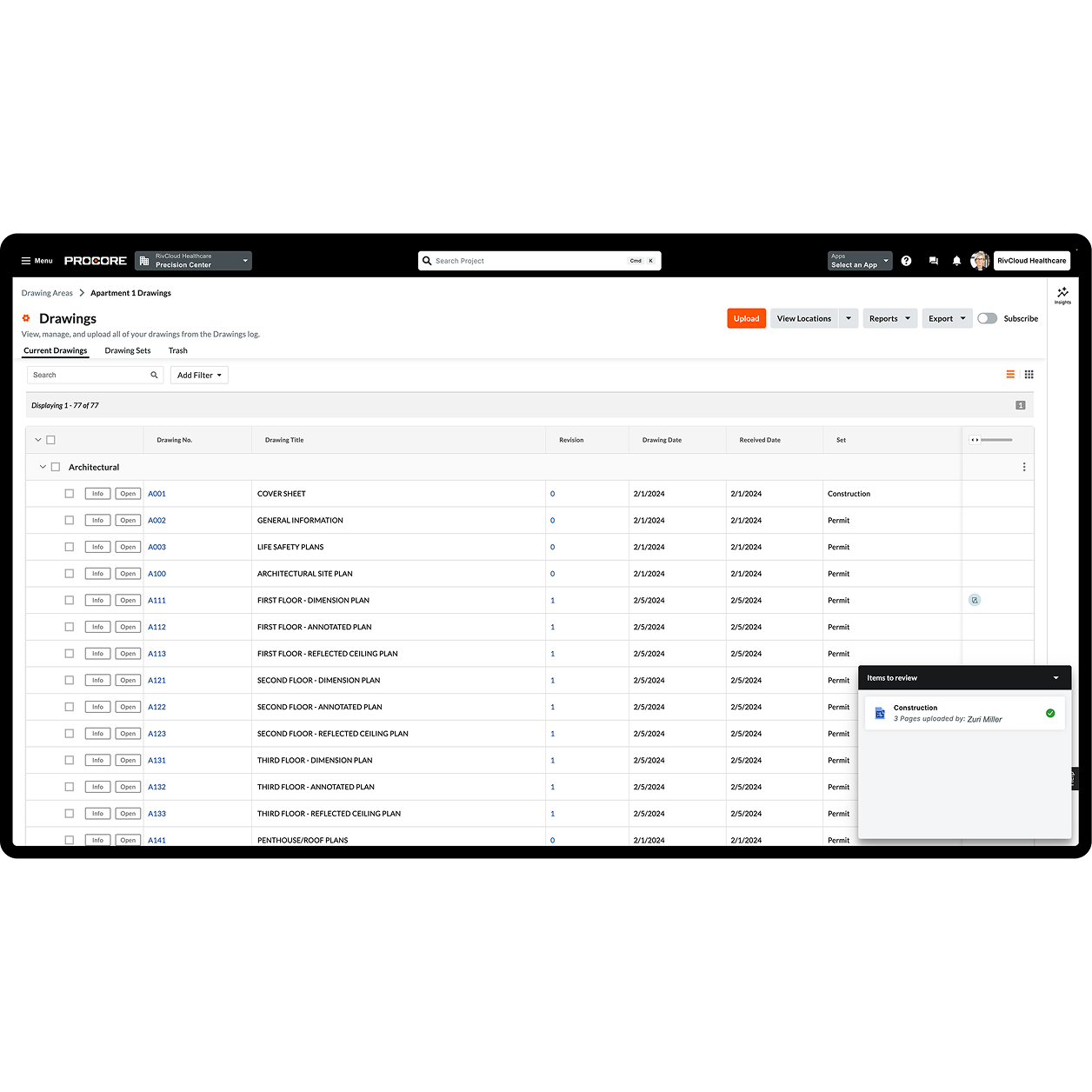

  • Automatically Split Drawing Sets

    Rather than splitting drawing sets into individual sheets manually, Procore does the work automatically upon upload—saving you hours of work.

  • Manage Drawings by Area

    Upload and manage drawings with similar numbering conventions by area. This helps users avoid confusion by separating their drawing sets during the upload process.

  • Avoid Rework with Comparisons

    On the road or at the job site, Procore's mobile apps for iPad, iPhone, Android, and Windows give users constant access to project drawings. View and edit drawings even while offline and automatically sync as soon as the device detects an available network connection.

  • Access Drawings on Mobile Devices

    On the road or at the job site, Procore’s mobile apps for iPad, iPhone, Android, and Windows give users constant access to project drawings. Mobile users are able to view and edit the current set of drawings even while offline. As soon as the device detects an available network connection, the revisions are automatically synced.

  • Eliminate Version Confusion

    With dynamic drawings and automatic version tracking you can see who has accessed the most recent set of drawings to make sure that everyone is on the same page.

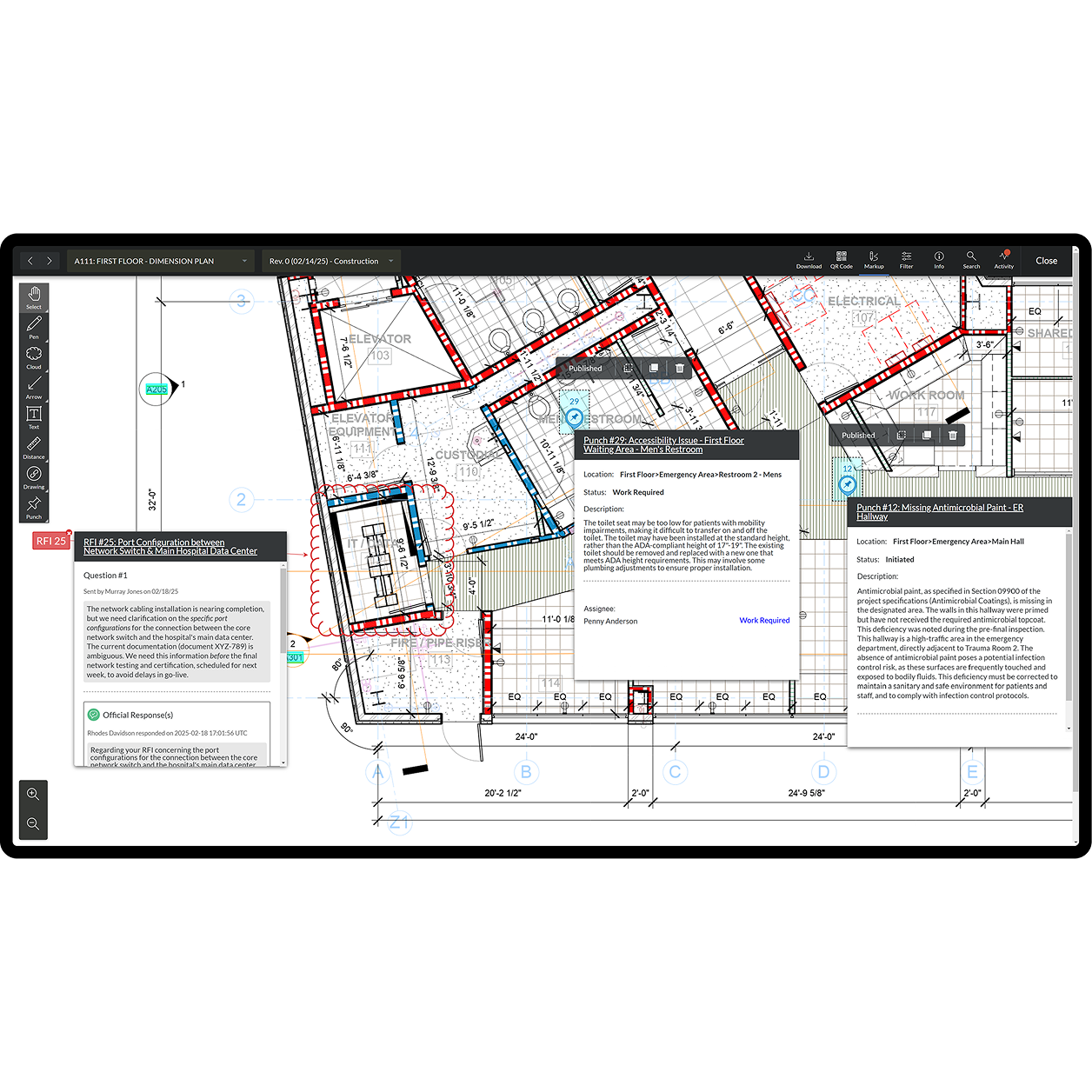

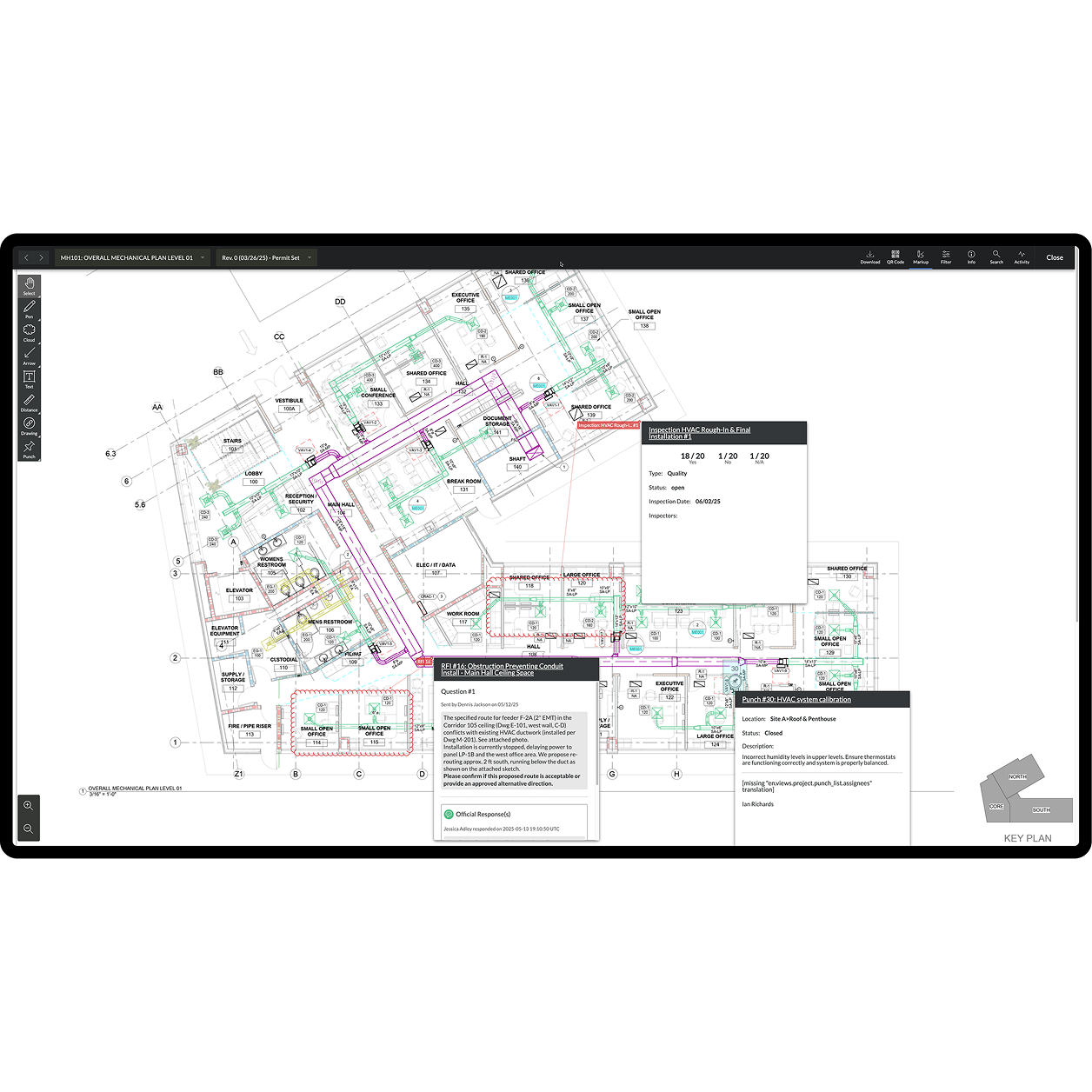

  • Mark Up Drawings

    Annotate drawings and add notes from your smartphone, tablet, or computer. Procore users can also link RFIs, documents, submittals, and photos, drop defect items, and share revisions automatically.

"All discussions and versions are right there, and we're not tied to the office."

Humphrey Mar
Rounds VanDuzer Architects
